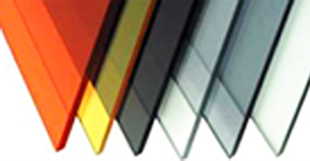

抗靜電塑料板

摘要

防靜電功能優秀
因為表面抵抗率達 10E6~10E8 歐姆/㎡, 所以能有效防止靜電發生。
表面硬度優秀(耐擦傷性)
因為表面做了硬化處理, 所以可防止擦傷。
耐化學性優秀
因為表面做了硬化處理, 所以對溶劑等化學物的耐性及耐候性非常優秀。
表面秀麗
表面有光澤、透明, 具有丙烯固有的外觀。

应用领域

Datasheet

FIeld	Items	ASTM	Unit	DCR-805-V0	DCR-805	DCR-705	DCR-605
FIeld	Items	ASTM	Unit	polycarbonate	polycarbonate	PMMA	PVC
Basic	Specific gravity	D792		1.20	1.20	1.19	1.40
Optical	Total light transmittance	D1003	%	84	84	88	73
Optical	Haze	D1003	%	0.9	0.9	0.4	3.6
Mechanical	Tensile strength at brake	D638	Mpa	71	71	70	50
	Elongation at brake	D638	%	115	115	2.5	7
	Fiexural strength	D790	Mpa	88	88	90	80
	Impact strength(charpy)	D256	kj/m³	13	13	1.6	2.3
	Rockwell hardness	D785		76	76	100	76
Thermal	Deflection temp (under loading)	D648	℃	127	127	95	65
	Thermal expansion coefficient	D696	/℃	5.2*10⁸	5.2*10⁸	6.0*10⁸	6.7*10⁸
	Thermal cycle			no change	no change	no change	no change

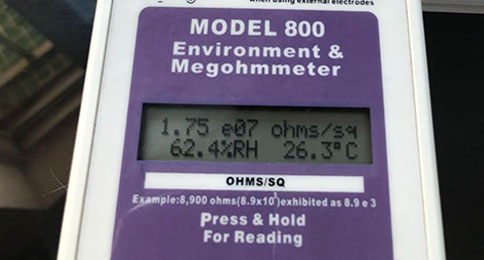

Electrical	Surface resistivity	D257	ohm/cm	10⁶~10⁸	10⁶~10⁸	10⁶~10⁸	10⁶~10⁸
Electrical	Volume resistivity	D257	ohm/cm	>10¹⁵	>10¹⁵	>10¹⁵	>10¹⁵
Chemical resistance(#1)	Acetone			0	0	0	0
	IPA			0	0	0	0
	Hydrochloric acid (36%)			0	0	0	0
	Nitric acid (60%)			0	0	0	0
	Sulfuric acid (97%)			0	0	0	0
Miscellaneous	Water absorption	D570	%	0.15	0.15	0.3	0.2
	Pencil hardness	D3363		HB	HB	4H	HB
	Steel wool test			Slighty scratched	Slighty scratched	no scratched	scratched
	Combustibility	D635		Self-extinguishing	Self-extinguishing	Flammable	Self-extinguishing
	UL standard	UL94		V-0	V-2	HB	V-0
